BOTE(博特)SH-860红外触发监控相机发布时间:2019-12-09

BOTE(博特)SH-860 官方商城价格:¥2700。详情请咨询中国区官方热线:400-828-9920.

BOTE(博特)SH-860红外触发监控相机,新款产品升级拍照像素为2000万。




Product Technical Data Sheet   BOTE(博特)红外触发相机技术参数
Product Category 类型Model Number 型号
Hunting Camera 打猎相机SH-860
Main Material主要材料
ABSAcrylic亚克力Stainless不锈钢 Silica gel硅胶

Approvals认证
CEFCCRoHS-
Item 项目Description 描述
Appearance design 外观设计 :双摄像头
Product Dimension 尺寸138*97*67mmH
Neutral Packing Size 包装204*123*83mmH
Net Weight 净重360g
Gross Weight 毛重535g
Neutral cartoon Packing Size

包装盒尺寸

435*425*275mmH
Neutral cartoon Packing number

包装箱内装机台数

20pcs/box     每箱20台
Standard color  标准颜色Camouflage and Black    黑色配迷彩

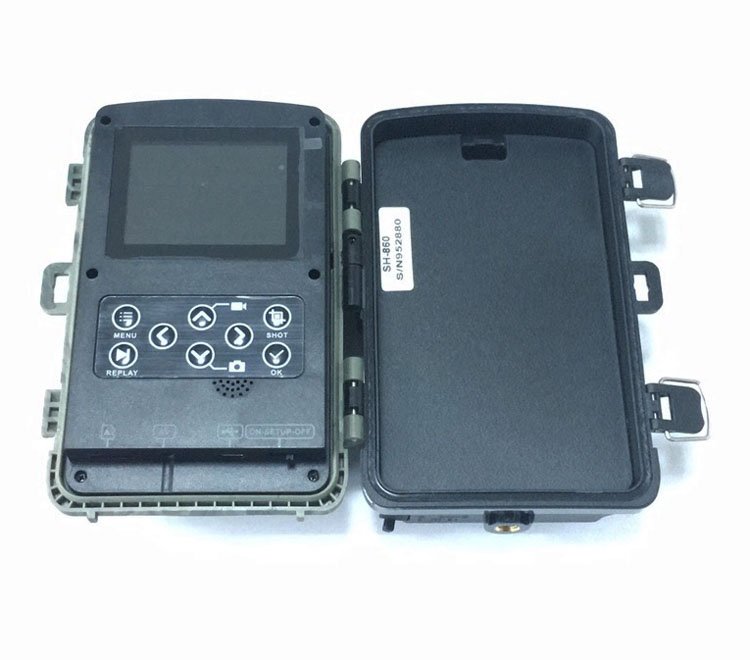

Operation Keypad 操作键盘8 Keys, 1 Switch     8键一开关
Sensor、Lens Type感应器、镜头类型
Image Sensor 图像感应器  2000万物理像素彩色CMOS感应器
PIR Sensor Detection angle

热释红外感应检测角

120 Degrees     一百二十度双镜头
Trigger Speed  触发速度0.5sec
PIR Sensitivity 热释红外灵敏度3 sensitivity levels: High/Normal/Low    高、中、低
PIR Sensing Distance

热释红外感应距离

65ft/20m ( Below 77°F/25℃ at the Normal Level)

六十五英尺/20m (在25℃常温情况下)

Triggering Interval 触发间隔5sec ~ 60mins    五秒到六十分钟
Lens 光学镜头F=1.8  FOV=90O  Auto IR-Cut
Display system 显示系统
LCD type  类型TFT LCD
Panel Dimension 面板尺寸2.4 Inch
Display color 显示颜色Full color     全彩
Number of dots 分辨率480*234
Range of IR flash红外光距离20m
Number of IR LED红外灯数量42pcs 940nm IR LED ,Auto IR-CUT
Camera Performance 性能
File format 文件格式Photo:JPG;  Video:AVI
Selectable Video Resolution

可选视频分辨率

1920×1080,1280×720,720×480,640×480,320×240
Frame speed 帧速30 fps
Selectable Image Resolution

可选图像分辨率

20MP,12MP,8MP,5MP,3MP,1MP
Shooting Numbers 连拍数量1~3pcs
Effectiveness 效用Daytime:1m-infinitive; Night time:1m-15m

白天:1米-无穷远;夜晚:1米-25米

Camera+Video 拍照和摄像First take Picture then Video    先拍照后摄像
Time Stamp 时间戳On/Off;Include serial No., temperature and moon phase

开或关;包含系列号、温度、月相等

Timer 定时On/Off; Time Lapse Programmable    开或关;时长可编程
Periodic Shooting周期性拍照Time Lapse 1 Second ~ 24Hours    时长可设置1秒 ~ 24小时
Device Serial No.设备系列号4 digits and 26 alphabets set by yourself

可依自己选用4个数字及26个字母

Password 密码4-Digit Numbers    四位数字
Built-in Microphone

内置麦克风

Yes    有
Built in Speaker 内置喇叭Yes    有
Auto-distinguish images

自动区分图像

Color images in daytime/black & white night images

白天为彩色图像,夜晚为黑白图像

TF Card Storage 卡存储Stop saving /Cycle storage (when the TF card is full)

卡满停止保存、或循环保存(当TF卡存满的情况)

Power supply 电源
Battery type 电池类型4×AA (Expandable to 8×AA) :8节5号电池(选配)
Other power 其它供电DC 6V or USB 5V
Standby Current 待机电流Less than 0.1mA    低于0.1mA
Standby time 待机时间3-6 Months(4×AA Or 8×AA)    三个月以上(4节AA或8节AA)
System & interface 系统接口
Adjustable 可调节Not    无
Interface  接口Micro USB2.0,TF CARD,6V DC External

Micro USB2.0,TF插槽、外供电6V DC座

Storage performance 存储性能
External memory 外部存储器TF card up to 32GB    支持TF容量高达32GB(选配)
Internal memory 内部存储器Not 无
Other 其它
Waterproof 防水IP protection class66    防护等级为IP66(产品升级后)
Fixed method 固定方式Belt,Tripod Nail    绑带、三脚架
Support Language 支持语言English,Chinese,French,Norwegian,Deutsch,Spanish,Portuguese,Japanese,Russian,Finnish,Italian,Czech,Romanian,Svenska,Korean

英语、中文、法语、挪威语、德语、西班牙语、葡萄牙、日语、俄语、芬兰语、意大利语、捷克语、罗马尼亚语、瑞典语、韩语

Operation Temperature 工作温度-20℃~+70℃   可以选配超低温的大容量锂铁电池可以-40~70摄氏度

Product Technical Data Sheet   BOTE(博特)红外触发相机技术参数

Product Category 类型Model Number 型号
Hunting Camera 打猎相机SH-860
Main Material主要材料
ABSAcrylic亚克力Stainless不锈钢 Silica gel硅胶
Approvals认证
CEFCCRoHS-
Item 项目Description 描述
Appearance design 外观设计:双摄像头
Product Dimension 尺寸138*97*67mmH
Neutral Packing Size 包装204*123*83mmH
Net Weight 净重360g
Gross Weight 毛重535g
Neutral cartoon Packing Size

包装盒尺寸

435*425*275mmH
Neutral cartoon Packing number

包装箱内装机台数

20pcs/box     每箱20台
Standard color  标准颜色Camouflage and Black    黑色配迷彩
Operation Keypad 操作键盘8 Keys, 1 Switch     8键一开关
Sensor、Lens Type感应器、镜头类型
Image Sensor 图像感应器   1200万物理像素彩色CMOS感应器
PIR Sensor Detection angle

热释红外感应检测角

120 Degrees     一百二十度
Trigger Speed  触发速度0.5sec
PIR Sensitivity 热释红外灵敏度3 sensitivity levels: High/Normal/Low    高、中、低
PIR Sensing Distance

热释红外感应距离

65ft/20m ( Below 77°F/25℃ at the Normal Level)

六十五英尺/20m (在25℃常温情况下)

Triggering Interval 触发间隔5sec ~ 60mins    五秒到六十分钟
Lens 光学镜头F=1.8  FOV=90O  Auto IR-Cut
Display system 显示系统
LCD type  类型TFT LCD
Panel Dimension 面板尺寸2.4 Inch
Display color 显示颜色Full color     全彩
Number of dots 分辨率480*234
Range of IR flash红外光距离20m
Number of IR LED红外灯数量42pcs 940nm IR LED ,Auto IR-CUT
Camera Performance 性能
File format 文件格式Photo:JPG;  Video:AVI
Selectable Video Resolution

可选视频分辨率

1920×1080,1280×720,720×480,640×480,320×240
Frame speed 帧速30 fps
Selectable Image Resolution

可选图像分辨率

16MP,12MP,8MP,5MP,3MP,1MP
Shooting Numbers 连拍数量1~3pcs
Effectiveness 效用Daytime:1m-infinitive; Night time:1m-15m

白天:1米-无穷远;夜晚:1米-15米

Camera+Video 拍照和摄像First take Picture then Video    先拍照后摄像
Time Stamp 时间戳On/Off;Include serial No., temperature and moon phase

开或关;包含系列号、温度、月相等

Timer 定时On/Off; Time Lapse Programmable    开或关;时长可编程
Periodic Shooting周期性拍照Time Lapse 1 Second ~ 24Hours    时长可设置1秒 ~ 24小时
Device Serial No.设备系列号4 digits and 26 alphabets set by yourself

可依自己选用4个数字及26个字母

Password 密码4-Digit Numbers    四位数字
Built-in Microphone

内置麦克风

Yes    有
Built in Speaker 内置喇叭Yes    有
Auto-distinguish images

自动区分图像

Color images in daytime/black & white night images

白天为彩色图像,夜晚为黑白图像

TF Card Storage 卡存储Stop saving /Cycle storage (when the TF card is full)

卡满停止保存、或循环保存(当TF卡存满的情况)

Power supply 电源
Battery type 电池类型4×AA (Expandable to 8×AA) :8节5号电池(选配)
Other power 其它供电DC 6V or USB 5V
Standby Current 待机电流Less than 0.1mA    低于0.1mA
Standby time 待机时间3-6 Months(4×AA Or 8×AA)    三个月以上(4节AA或8节AA)
System & interface 系统接口
Adjustable 可调节Not    无
Interface  接口Micro USB2.0,TF CARD,6V DC External

Micro USB2.0,TF插槽、外供电6V DC座

Storage performance 存储性能
External memory 外部存储器TF card up to 32GB    支持TF容量高达32GB(选配)
Internal memory 内部存储器Not 无
Other 其它
Waterproof 防水IP protection class66    防护等级为IP66(产品升级后)
Fixed method 固定方式Belt,Tripod Nail    绑带、三脚架
Support Language 支持语言English,Chinese,French,Norwegian,Deutsch,Spanish,Portuguese,Japanese,Russian,Finnish,Italian,Czech,Romanian,Svenska,Korean

英语、中文、法语、挪威语、德语、西班牙语、葡萄牙、日语、俄语、芬兰语、意大利语、捷克语、罗马尼亚语、瑞典语、韩语

Operation Temperature 工作温度-20℃~+70℃   可以选配超低温的大容量锂铁电池可以-40~70摄氏度

应用范围:

适用群体及用途:
1)生态学调研、物候、环境保护部门自动定时监测照相摄像,如雪山草地植物高原等的自动变化定时监测

2)植物生态监测自动定时照相摄像,观察植物生态可设为定时拍照
3)各自然保护区、农林科学院所、林业局等单位、野保林检、湿地、大学各生科院所及自然博物馆、动植物保护协会、动物二调等科研科考、动物野保等单位,进行动植物调查,生态监测,行为学研究或生物多样性调查等用途
4)生态摄影爱好者,野保志愿爱好者,动物生态监测或野外侦测自动照相录像,缩时摄影等
5)打猎爱好者用于侦测动物及其通道路线种类等,方便更好选择路线及猎捕动物(请遵守所在国家野生动物保护法)
6)各自然保护区、林业单位、野保处站、森林公安、林下经济作物场所、苗圃动物养殖场鱼塘果园等防偷盗猎捕的自动红外监控
7)交通环境监测站,气象局自动监测能见度等
8)特殊部门场所监测用。
9)新闻记者隐蔽观察拍照摄像,调查公司、取证
10)定时缩时摄影、超市、工地、矿场、仓库等秘密监控
11)办公室、家庭内部秘密监控及家居物业防偷盗取证,安放在室内外任何位置,或监控别墅及庭院周围的环境,与普通监控摄像头相比无须布线,更具有隐蔽性使用更方便。
