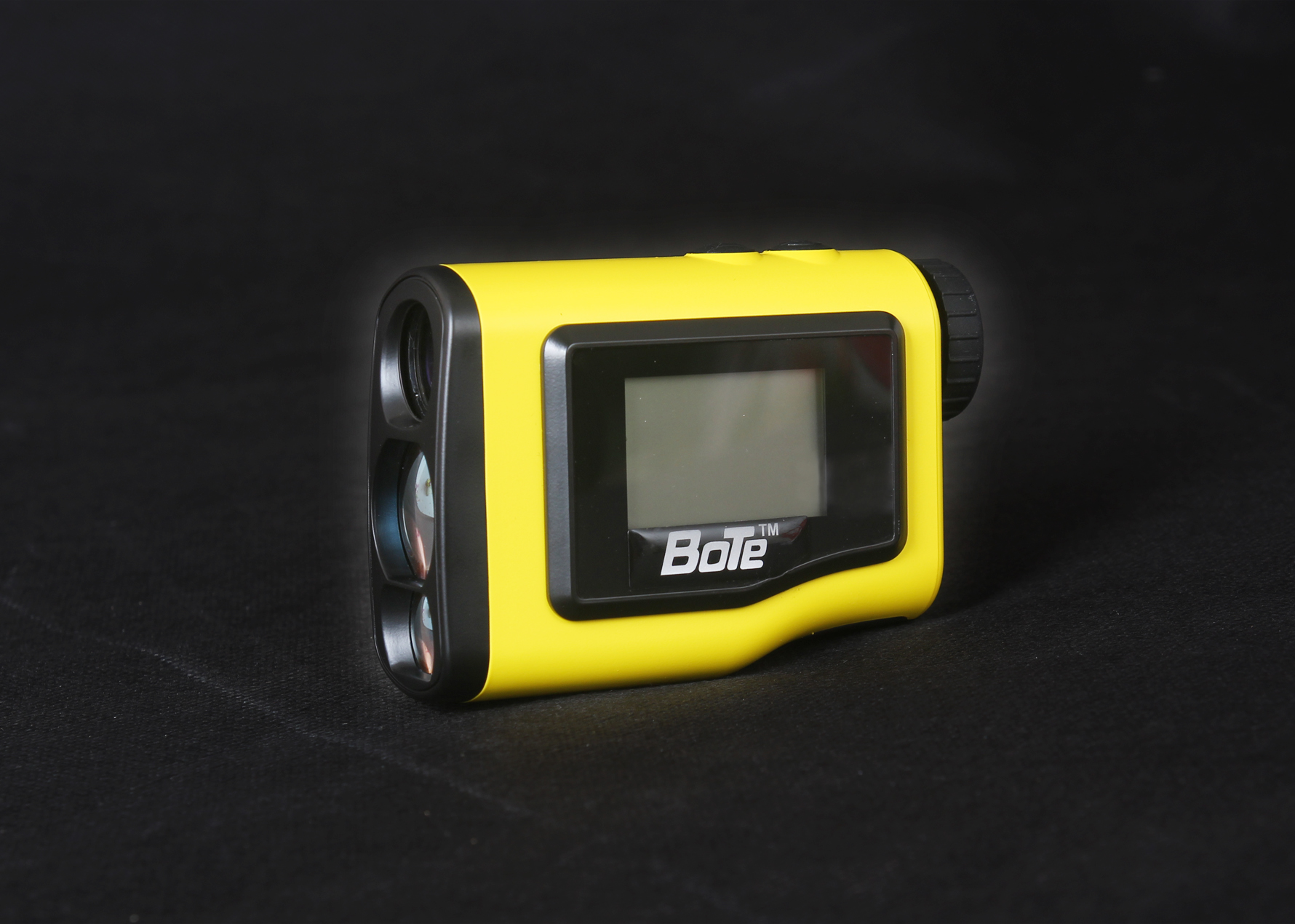

Item description: bothe multi-function color laser range finder
Brand: BoTe (bot)
Product use:

Multifunction laser Angle + laser rangefinder is a telescope Angle range of portable photoelectric instrument, a combination of the telescope and laser ranging and the function of the Angle, mainly manifested in two aspects:

1, in a clear observation of objects at the same time, can be fixed objects within a certain range of distance measurement.Ranging accuracy is high, short distance measuring time, distance display intuitive (with color LCD screen display), power saving and automatic power outages, etc.

2, multifunctional laser Angle, rangefinder melt together the latest technology, and to achieve the function of target distance and Angle measurement.In achieving the target distance, but also can display the telescope to the target point of attachment and the ground plane Angle (elevation as +, bow Angle -), relative height and level distance.

Equipment of laser transmission power is small, the human eye safety;Don't need cooperation target, can be on any target range;Small volume, light weight, easy to carry.Machines using CR2-3 v battery power supply, purchase and replacement are very convenient.

Ranging telescope is widely used in tourism, watching sports, golf courses, big-game hunting, camping, mountain climbing, outdoor outing, such as sports venues, is to improve the quality of field activities, measure the target distance is good helper.


Second, the main technical indicators:

1, the range of log: 600 as (4 m - 600 m)

2, ranging error: + / - 0.5 M usually within (200);

3, features include: measuring Angle, measuring vertical height, rectangular area, circle size (diameter).

4, subsequent increases of bluetooth data communication function: no;

5, telescope ratio: 6 x;

6, telescope objective aperture: 21 mm;

7, telescope eyepiece aperture: 16 mm;

8, an exit pupil diameter: 3.8 mm;

9, viewing Angle: 7.2 °;

10, depending on the degree of regulating range: plus or minus 3 diopter;11

11, product weight: 175 g (including battery);

12, battery type: CR2-3 v lithium electricity;

13, liquid crystal display: 1.8 -inch color LCD display screen

14, protection grade: rain

15, appearance size:

(excluding the eyepiece) length: 97 mm, 106 mm (including the eyepiece)

35 mm width:

Height: 73 mm (front), 68 mm (backend)

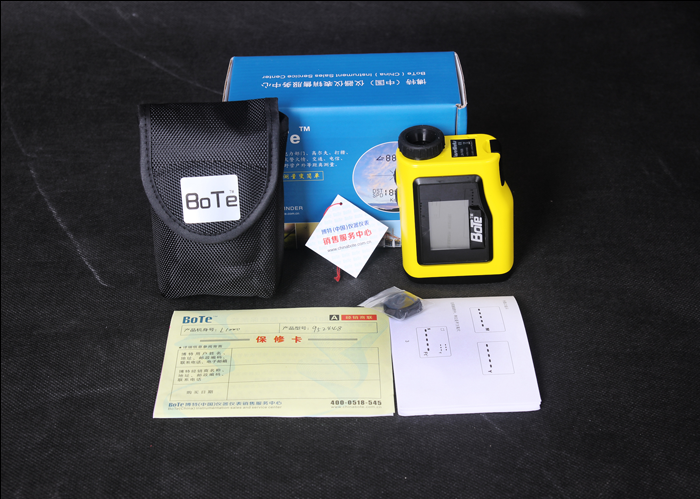

16, multi-function ranging, goniometer accessories list:

The name of the
The number of
Distance measuring Angle telescope
1
Wool bag
1
Color box
1
Hang with
1
Plastic bags
1
Instruction for use
1
Wipe cloth
1
Warranty card
1

Is very suitable for: build team, electric power, forestry, telecom, housing measurement, outdoor areas such as widely used
Products have 8 big functions: distance, height, Angle, horizontal distance measurement, the rectangle area/perimeter, measuring horizontal rectangle area/perimeter, measuring area/perimeter, measuring level area/perimeter.Meet your demand for measuring!
